PTE20Q2SCIMP

Electric lithium pallet truck with weighing system and printer 2000 kg

PTE20Q2SCIMP

Electric lithium pallet truck with weighing system and printer 2000 kg

The PTE20Q2SCIMP lithium electric pallet truck with integrated thermal printer enables pallet weight control directly during handling operations. The ergonomic tiller reduces operator effort, while printed weight tickets improve traceability.

more information

	Designation
	PTE20Q2SCIMP Electrique lithium pallet truck with scale & printer 2000 kg Weight : 180 kg Bar code : 3700664815220

DESCRIPTION

TECHNICAL CHARACTERISTICS

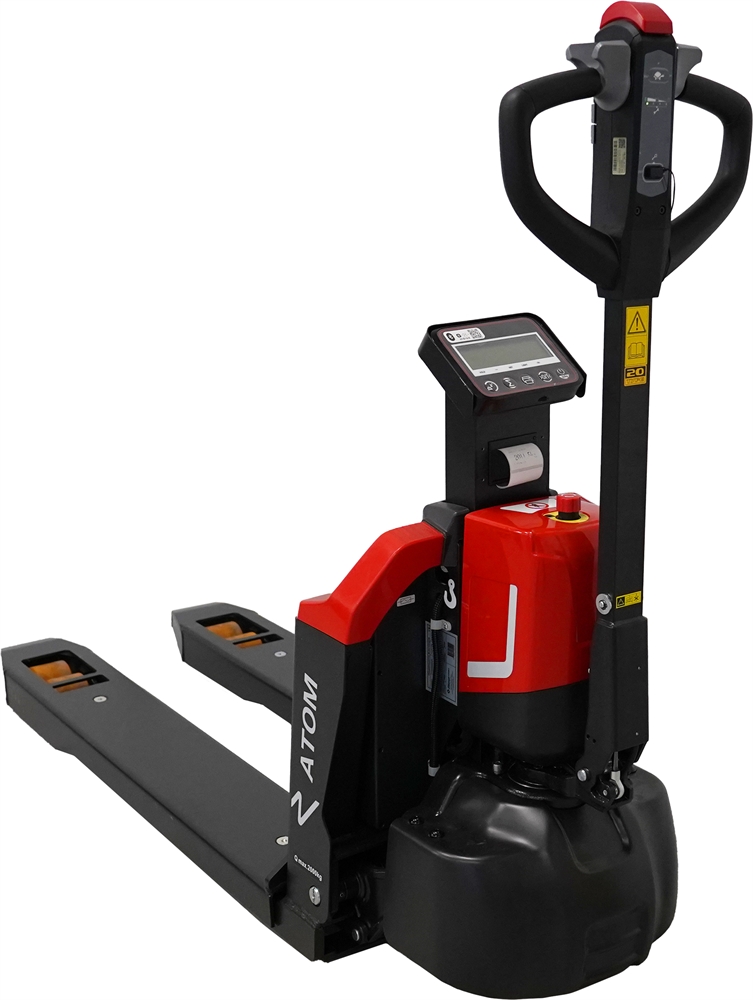

The PTE20Q2SCIMP ATOM lithium electric pallet truck is part of the STOCKMAN range of compact electric pallet trucks designed for daily pallet handling.

Its nominal capacity is 2 tonnes with a 600 mm load centre, covering standard logistics and distribution requirements.

This model integrates a weighing system and a thermal printer as standard, combining transport and weight control in a single piece of equipment. This configuration supports receiving, order preparation and dispatch operations without the need for a separate floor scale.

Power is supplied by a lithium-ion battery with electronic management via a BMS compliant with EN 62619, ensuring stable operation and simplified maintenance.

Ideal for supermarkets, warehouses and order preparation areas

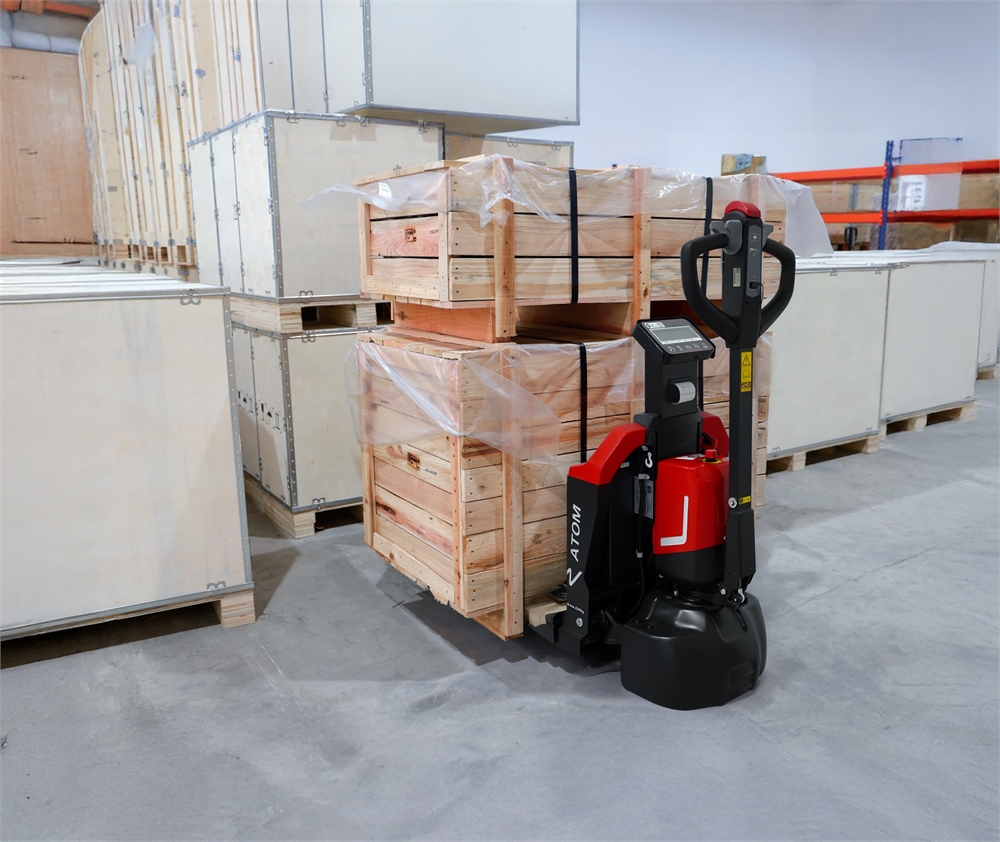

The PTE20Q2SCIMP is well suited to supermarkets, logistics warehouses, reserve areas, receiving docks and order picking zones. Integrated weighing supports inbound goods checks, pallet consolidation before shipment and load verification prior to storage.

Its compact format allows easy movement in narrow aisles and picking areas. In low-light environments, the backlit LCD display ensures clear weight readings.

The truck is also suitable for rental companies, as it combines electric traction, pallet lifting and weight control with ticket printing, reducing the number of additional devices to manage on site.

Key benefits of the PTE20Q2SCIMP electric pallet truck

Designed for regular professional use with a focus on operational simplicity:
Usable onboard weighing: weight display on screen with hold function, unit conversion and load accumulation for consolidation tasks.
Integrated printing: thermal printer with low-voltage protection, printing weight tickets without reducing autonomy and remaining operational while travelling.
Manoeuvrability in confined spaces: travel possible with the tiller in vertical position, ideal for tight areas and at the base of racking.
Robust architecture: chassis with high-strength steel plate, reliability-oriented design to limit downtime under repeated use.
Lithium continuity: maintenance-free lithium battery with quick-connect plugs for easy battery exchange and fast charging as specified.

Technical characteristics
Structure / chassis / load

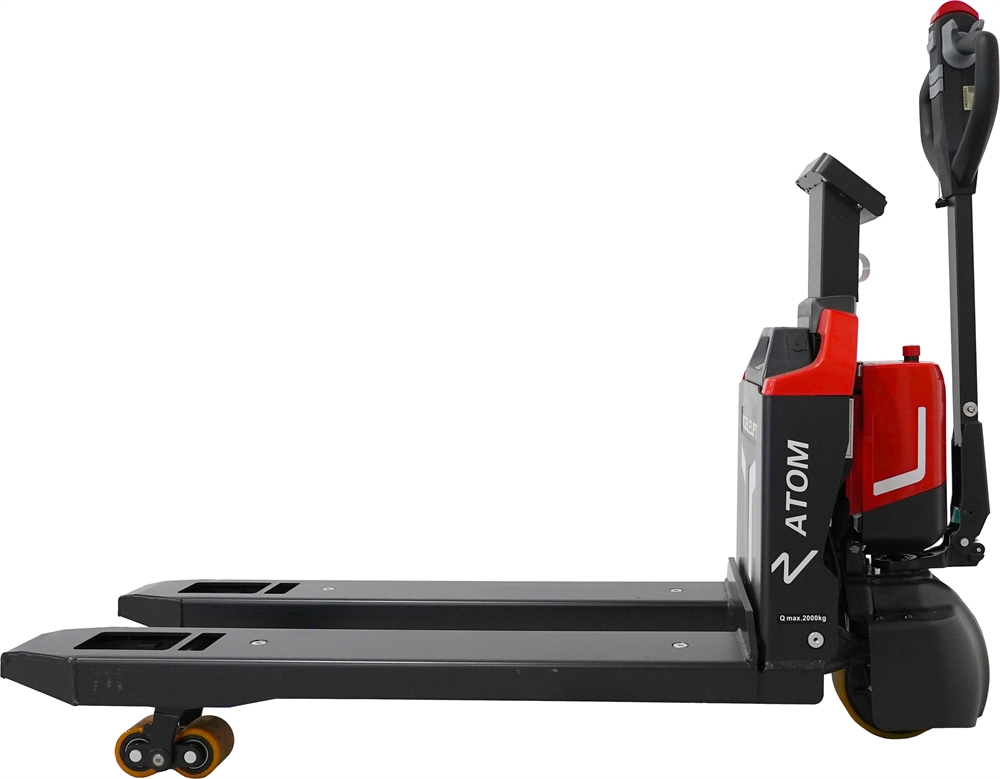

The nominal capacity is 2000 kg. A wheelbase of 1184 mm and an overall length of 1543 mm place the truck in the compact category, suitable for short logistics aisles. The reinforced steel chassis is designed for durability. Standard lift height is 115 mm, with a minimum fork height of 90 mm, compatible with Euro pallets and industrial floors.
Travel speed and movement
Travel speed reaches 4.9 km/h, loaded or unloaded, supporting consistent internal flow rates. The electromagnetic service brake ensures controlled stopping, particularly when moving between storage and preparation zones. Gradeability reaches 7% with load and 16% without load, allowing short ramps and slight platform inclines.
Manoeuvrability and dimensions
Overall width of 562 mm and external fork width of 562 mm match standard pallets. A turning radius of 1358 mm and an aisle width of 2128 mm with a 800 × 1200 mm pallet support work in constrained environments, with easier turning at aisle ends. Tiller height (715 to 1125 mm) covers typical operating positions and is combined with an ergonomic tiller design.
Wheels and rolling
Polyurethane wheels are suited to smooth warehouse floors. The drive wheel (Ø210 × 70 mm) provides traction, with front rollers (Ø80 × 70 mm) and stabiliser wheels (Ø80 × 30 mm), ensuring stability, directional control and consistent behaviour under load.
Power, motors and autonomy
Traction is provided by a 1 kW motor (S2 60 min) and lifting by a 0.8 kW motor (S3 10%). The lithium battery is rated at 20 Ah, with a nominal voltage of 48 V as indicated in the VDI 2198 table. Declared energy consumption of 0.25 kWh/h supports efficient operation on repetitive cycles. The integrated BMS, compliant with EN 62619, enhances battery management and electrical safety. An external programming port facilitates adjustment and diagnostics.

Ergonomics, MSD prevention and safety

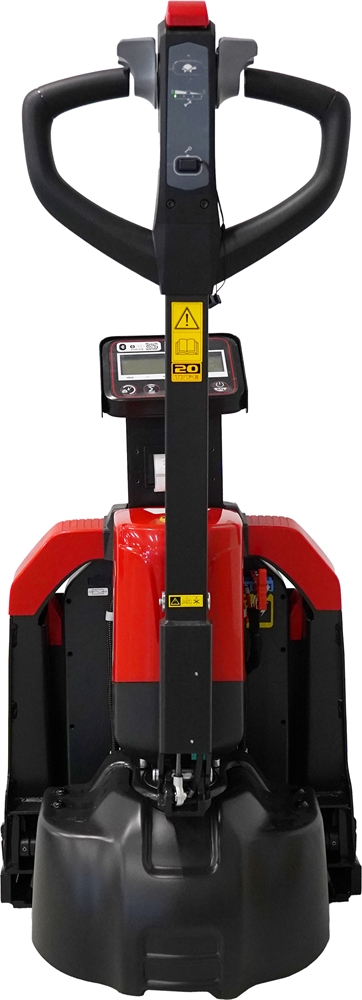

Electric assistance reduces pushing and pulling effort during pallet movement, lowering physical strain on internal routes. The ergonomic tiller and gas-assisted tiller cylinder contribute to stable handling and controlled manoeuvres.

The electromagnetic brake secures stopping, including in shared working areas.

Noise level remains below 70 dB(A), improving warehouse comfort. Integrated weighing reduces trips to a dedicated scale, limiting unnecessary handling and posture changes.

Productivity and operational efficiency

Combining travel, weighing and printing streamlines internal organisation. Weight checks are performed directly within the flow between receiving, preparation and dispatch.

Printing weight tickets from the pallet truck improves internal traceability and simplifies logistics documentation. Weight hold, unit conversion and load accumulation functions reduce manual checks and re-entry.

The lithium battery, with quick-connect exchange and capacity options listed in the data sheet, supports operational continuity throughout the working day.

Typical applications
Pallet receiving and dockside weight control
Order consolidation and load accumulation before dispatch
Weight checks in store reserves and internal replenishment
Wrapped pallet preparation with printed weight tickets
Warehouse logistics with narrow aisles and frequent rotations
Short- or long-term rental for multi-client, multi-activity sites

Target users

This lithium electric pallet truck with integrated weighing and printing meets the needs of logistics platforms, food distributors, industrial sites with daily order preparation, transport operators requiring load checks, and rental companies seeking compact, easy-to-use and versatile equipment.

The PTE20Q2SCIMP delivers a coherent solution for internal flows requiring electric handling, weight control and on-site ticket printing, without multiplying additional equipment.
