PS12N

Electric stand-up rider stacker 1200 kg

PS12N

Electric stand-up rider stacker 1200 kg

The configuration of our PS NDA electric stackers range provides greater power and productivity. They are equipped with power steering and feature a load capacity of 1.2 tons.

more information

	Designation
	PS12N29FFLCP Electric stand-up rider stacker 2900 mm free lift 1200 kg Weight : 1010 kg Bar code : 3700664808857 Catalogue P.128-131
	PS12N32FFLCP Electric stand-up rider stacker 3200 mm free lift 1200 kg Weight : 1040 kg Bar code : 3700664806877 Catalogue P.128-131
	PS12N36FFLCP Electric stand-up rider stacker 3600 mm free lift 1200 kg Weight : 1080 kg Bar code : 3700664808864 Catalogue P.128-131

DESCRIPTION

TECHNICAL CHARACTERISTICS

The new PS NDA short-tiller pallet trucks series are the result of many years of experience in industrial material handling.
Its design has taken into consideration various details and several priorities such as service life extension, performance, easy maintenance and components interchangeability.
The use of high-end components from well-know suppliers not only improves reliability but also builds customers trust and puts the product at a new top level. Which is why almost all core components come from top leading brands with solid experience in the material handing industry.
These stackers set-up provide high power and productivity.

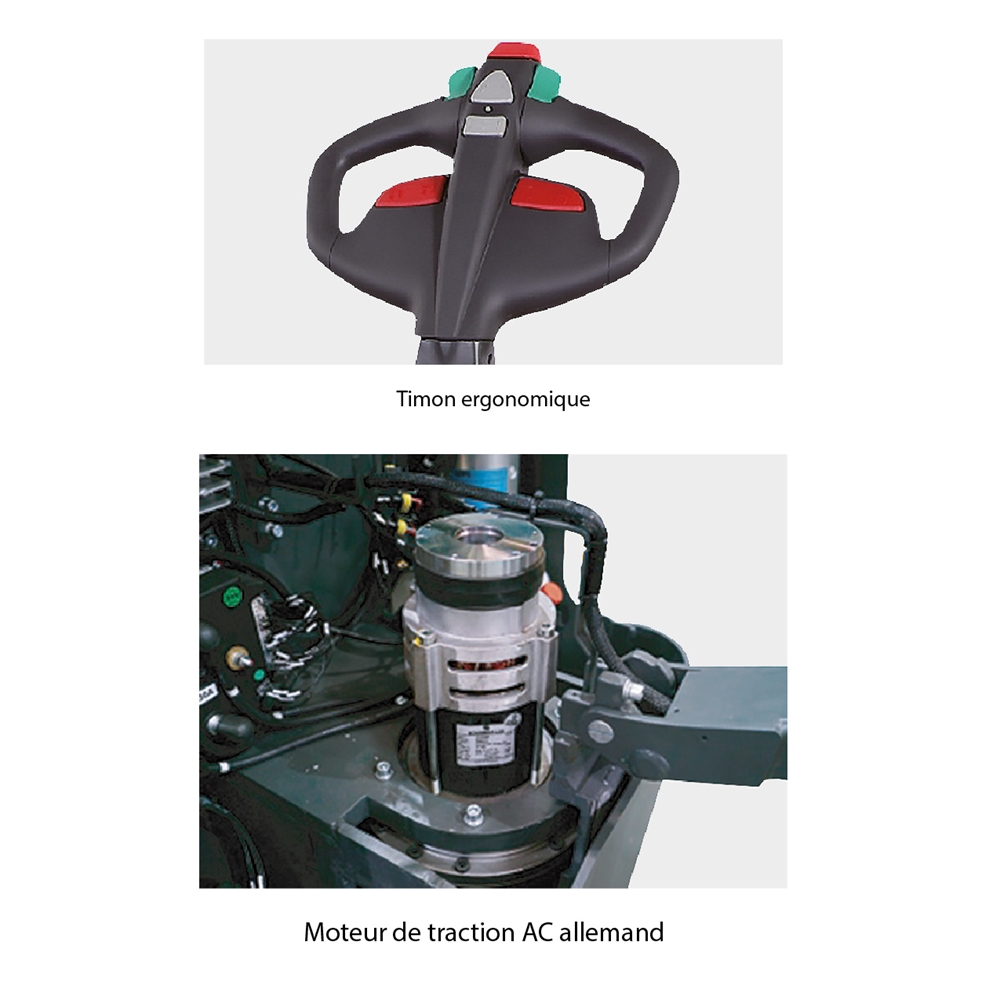

The powerful AC motor unit, designed and manufactured by Schabmüller is paired with high-end ZF drive unit and lntorq electromagnetic brake. The motor unit allows up to 8 km / h traction speed.
Rader Vogel or Wicke high-end steering wheel guarantees an extended service life of the wheels.
The Electric Power Steering (EPS) allows precise and fast control of the steering wheel and ensure high efficiency and optimal safety.
The driving and steering controllers are manufactured by Zapi (ltaly). The leading European brand with long history in the industry offers extremely reliable and flexible solutions and a high-level of performance of the control system.
The integrated flip-down platform, the lateral protection arms as well as the brand new internal structure provide the smallest overall length and tightest turning radius. Moreover, the suspension system of the platform offers great comfort to operators.
The robust chassis and its 8 mm thick mainframe protect the stacker and the components against impact collisions. The stainless steel battery cover provides enhanced protection.
The battery side access is convenient for multi-shift operations. Side battery extraction ensures a time saving, quick and easy battery replacement with an appropriate trolley.
Rema ergonomic handle ensures superior ergonomics and a reliable control system. It is coupled to an electric power steering system.
The battery refilling system is available in option.
PIN-code or RFID card access control system, in option, considerably simplify access control procedures in case the unit might be used by more than one operator.
The built-in charger option eases battery charging for light industrial use (with the exception of multi-shift operations where battery replacement is needed).
The proportional lift and lower system has been designed from solutions suggested by HPI, leader in hydraulic systems manufacturing. It guarantees the forks lift and lower as well as a smooth acceleration or deceleration when handling fragile loads.
Electric propulsion
Operator type: pedestrian
Rated capacity: 1.2 metric tons
Load center distance: 600 mm
Load distance, center of drive axle to fork (x): 647 mm
Wheelbase: 1167 mm
Polyurethane wheels (PU)
Steering wheels dimensions: 230 x 70 mm
Front rollers dimensions: 85 x 75 mm
Stabilizing rollers dimensions: 150 x 54 mm
Number of front / rear wheels (x= steering wheel): 1 x + 1/4
Straddle legs center distance: 510 mm
Tread, rear: 390 / 505 mm
Tiller height in drive position min. / max.: 950 / 1350 mm
Fork height lowered: 90 mm
Overall length: 1855 mm
Length without forks: 705 mm
Overall width: 790 mm
Fork dimensions: 60 / 180 / 1150 mm
Width across forks: 570 / 685 mm
Ground clearance: 28 mm
Aisle width for pallets 1000 x 1200 crossways: 2285 mm
Aisle width for pallets 800 x 1200 lengthways: 2250mm
Turning radius: 1380 mm
Travel speed laden / unladen: 7 / 8 km/h
Lift speed, laden / unladen: 0,09 / 0,14 m/s
Lowering speed, laden / unladen: 0,25 / 0,2 m/s
Gradeability performance of 6% laden and 12% unladen
Electromagnetic service brake
Battery weight: See product specifications available for download
Type of drive control: AC - speed control
Sound level at driver's ear acc. to EN 12053:<70 dB
For information on all lift heights and residual capacities, refer to the chart on images or download the product specifications for further technical information
