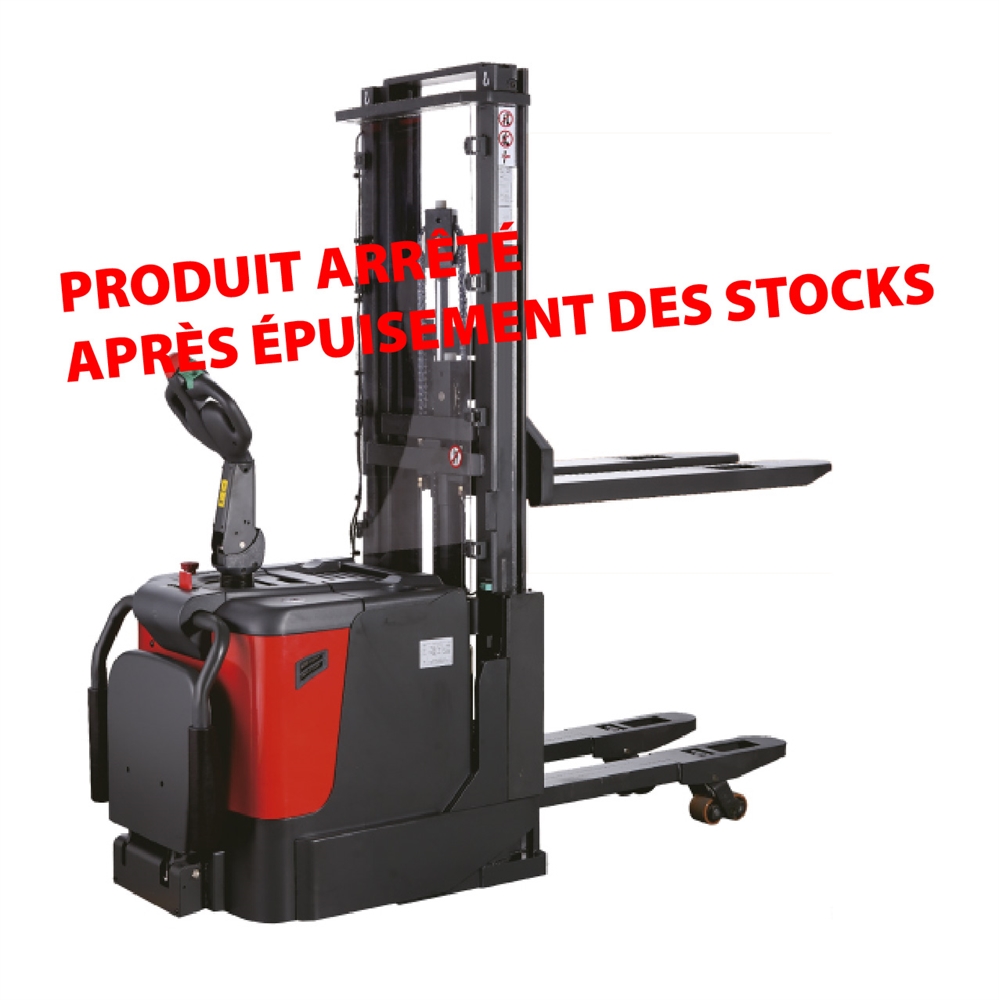

Stand-up rider electric trans-stacker with reinforced straddle legs 2000 kg

PS20D DA

Stand-up rider electric trans-stacker with reinforced straddle legs 2000 kg

PS20DA is a large capacity industrial trans-stacker. Reinforced straddle legs double the load capacity and allow to transport 2 pallets simultaneously instead of 1 to maximize efficiency. Available with or without free lift height (FFL up to 1500 mm).

more information
Designation
PS20D1750DA - Stand-up rider electric trans-stacker with reinforced straddle legs 1750 mm 2000 kg PS20D1750DA
Stand-up rider electric trans-stacker with reinforced straddle legs 1750 mm 2000 kg

Weight : 1220 kg
Bar code : 3700664803302
Catalogue P.62
PS20D29FFLDA - Stand-up rider electric trans-stacker with reinforced straddle legs 2900 mm 2000 kg PS20D29FFLDA
Stand-up rider electric trans-stacker with reinforced straddle legs 2900 mm 2000 kg

Weight : 1305 kg
Bar code : 3700664836010
Catalogue P.62

  • The PS20D DA is a stand-up rider electric trans-stacker with reinforced straddle legs
  • It has a rated capacity of 2000 kg and guarantees a reliable and safe travel on walkways, ramps and uneven floors.
  • It is available in two models: PS20D1750DA in standard lift et PSD2029FFLDA
  • Its flip-down platform and lateral protections offer better ergonomics on long distances
  • Mast and reinforced straddle legs enhance lift height and load capacity
  • Maintenance-free AC motor
  • Ergonomic and reliable flip-down platform and lateral protection design for stand-up rider use
  • CAN-BUS eliminates the need for excessive wiring so that reliability is guaranteed.
  • This technology eases diagnosis and settings on maintenance operations. Maintenance downtime is shorter than regular trans-stacker that do not have this technology.
  • Parts last longer with digital signals than analog signals.
  • Thanks to its reinforced straddle legs, the trans-stalker offers multi-level order picking and increases its load capacity by two.
  • Traveling on walkways, ramps and uneven floors is safe unlike standard trans-stackers.
  • Battery is protected by a robust cover designed to store stretch films and tools.
  • Equipped with an electric power steering reduces steering effort and operator fatigue for greater productivity increasing maneuverability in tight spaces.
  • Two models available: PS20D1750DA (1750 mm height) and PS20D29FFL DA (2900 mm height)
  • Load capacity on stacker mode: 2 metric tons for both models
  • Fork load capacity: 2 metric tons for both models
  • Straddle legs load capacity / pallet truck mode: 2 metric tons for both models
  • Service weight: 1220 kg (PS20D1750DA) or 1305 kg (PS20D29FFLDA)
  • Polyurethane wheels
  • Steering wheel dimensions: 230 mm diameter
  • Front roller dimensions: 80 mm diameter
  • Stabilizing rollers: 124 mm diameter for both models
  • Number of front / rear wheels (x= steering wheel): 1 x + 2/4 for both models
  • Mast height lowered: 1454 mm (PS20D1750DA) or 2027 mm (PS20D29FFLDA)
  • Free lift height: 150 mm (PS20D1750DA) or 1480 mm (PS20D29FFLDA)Standard lift: 1660 mm (PS20D1750DA) or 2815 mm (PS20D29FFLDA)
  • Extended mast height: 2224 mm (PS20D1750DA) or 3447 mm (PS20D29FFLDA)
  • Initial lift: 120 mm
  • Tiller height in drive position min. / max.: 945 mm / 1370 mm for both models
  • Fork height lowered: 88 mm for both models
  • Overall length: 2055 mm for both models
  • Length w/o forks: 905 mm for both models
  • Overall width: 795 mm for both models
  • Fork length:1150 mm for both models
  • Width across forks: 575 / 685 mm for both models
  • Ground clearance: 28 mm for both models
  • Aisle width for pallets 1000 x 1200 crossways: 2269 mm for both models
  • Aisle width for pallets 800 x 1200 lengthways: 2536 mm for both models
  • Turning radius: 1867 mm
  • Travel speed laden / unladen: 6 / 6 km/h
  • Gradeability performance of 6 % laden and 12% unladen
  • Electromagnetic service brake
  • Sound level at driver's ear acc. to EN 12053: 69 dB
  • Download the product specifications for further technical information
