PS20D DA

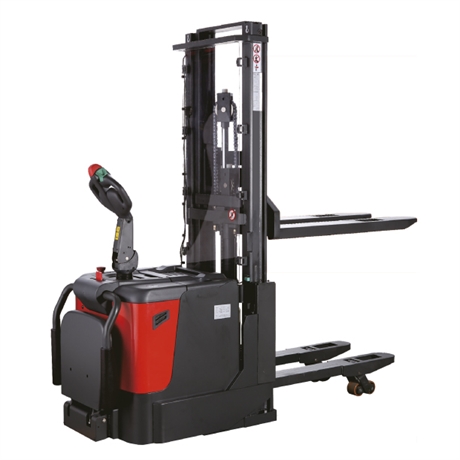

Stand-up rider electric trans-stacker with reinforced straddle legs 2000 kg

PS20D DA

Stand-up rider electric trans-stacker with reinforced straddle legs 2000 kg

PS20DA is a large capacity industrial trans-stacker. Reinforced straddle legs double the load capacity and allow to transport 2 pallets simultaneously instead of 1 to maximize efficiency. Available with or without free lift height (FFL up to 1500 mm).

more information

	Designation
	PS20D1750DA Stand-up rider electric trans-stacker with reinforced straddle legs 1750 mm 2000 kg Weight : 1220 kg Bar code : 3700664803302 Catalogue P.62
	PS20D29FFLDA Stand-up rider electric trans-stacker with reinforced straddle legs 2900 mm 2000 kg Weight : 1305 kg Bar code : 3700664836010 Catalogue P.62

DESCRIPTION

TECHNICAL CHARACTERISTICS

The PS20D DA is a stand-up rider electric trans-stacker with reinforced straddle legs
It has a rated capacity of 2000 kg and guarantees a reliable and safe travel on walkways, ramps and uneven floors.
It is available in two models: PS20D1750DA in standard lift et PSD2029FFLDA
Its flip-down platform and lateral protections offer better ergonomics on long distances
Mast and reinforced straddle legs enhance lift height and load capacity
Maintenance-free AC motor
Ergonomic and reliable flip-down platform and lateral protection design for stand-up rider use
CAN-BUS eliminates the need for excessive wiring so that reliability is guaranteed.
This technology eases diagnosis and settings on maintenance operations. Maintenance downtime is shorter than regular trans-stacker that do not have this technology.
Parts last longer with digital signals than analog signals.
Thanks to its reinforced straddle legs, the trans-stalker offers multi-level order picking and increases its load capacity by two.
Traveling on walkways, ramps and uneven floors is safe unlike standard trans-stackers.
Battery is protected by a robust cover designed to store stretch films and tools.
Equipped with an electric power steering reduces steering effort and operator fatigue for greater productivity increasing maneuverability in tight spaces.
Two models available: PS20D1750DA (1750 mm height) and PS20D29FFL DA (2900 mm height)
Load capacity on stacker mode: 2 metric tons for both models
Fork load capacity: 2 metric tons for both models
Straddle legs load capacity / pallet truck mode: 2 metric tons for both models
Service weight: 1220 kg (PS20D1750DA) or 1305 kg (PS20D29FFLDA)
Polyurethane wheels
Steering wheel dimensions: 230 mm diameter
Front roller dimensions: 80 mm diameter
Stabilizing rollers: 124 mm diameter for both models
Number of front / rear wheels (x= steering wheel): 1 x + 2/4 for both models
Mast height lowered: 1454 mm (PS20D1750DA) or 2027 mm (PS20D29FFLDA)
Free lift height: 150 mm (PS20D1750DA) or 1480 mm (PS20D29FFLDA)Standard lift: 1660 mm (PS20D1750DA) or 2815 mm (PS20D29FFLDA)
Extended mast height: 2224 mm (PS20D1750DA) or 3447 mm (PS20D29FFLDA)
Initial lift: 120 mm
Tiller height in drive position min. / max.: 945 mm / 1370 mm for both models
Fork height lowered: 88 mm for both models
Overall length: 2055 mm for both models
Length w/o forks: 905 mm for both models
Overall width: 795 mm for both models
Fork length:1150 mm for both models
Width across forks: 575 / 685 mm for both models
Ground clearance: 28 mm for both models
Aisle width for pallets 1000 x 1200 crossways: 2269 mm for both models
Aisle width for pallets 800 x 1200 lengthways: 2536 mm for both models
Turning radius: 1867 mm
Travel speed laden / unladen: 6 / 6 km/h
Gradeability performance of 6 % laden and 12% unladen
Electromagnetic service brake
Sound level at driver's ear acc. to EN 12053: 69 dB
